duplex stainless steel lap joint DN 600 sch 20 MSS SP-13
Price: |
1.0~600.0 USD |
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Hebei, China (Mainland) |
Product Detail
Model No.:
DN 600
Production Capacity:
1,118,000 Ton/Tons per Year
Delivery Date:
3~15days or as customers' r...
Technics:
Forged
Material:
Stainless Steel
Brand Name:
GEE
standard:
MSS SP43
Means of Transport:
Ocean,Land,Air
Packing:
as the expore standards pac...
Shape:
Equal
Type:
Flange
Connection:
Male
wall thickness:
sch 10s
material:
ASTM A815 UNSS 31803
1.Save time and money for our customers
2.Material:ASTM A 815 UNSS31803
Standard:MSS SP-43
4.API,CE BV ABS
5.Number of assembly has a discount
ASTM A815 UNSS 31803 material

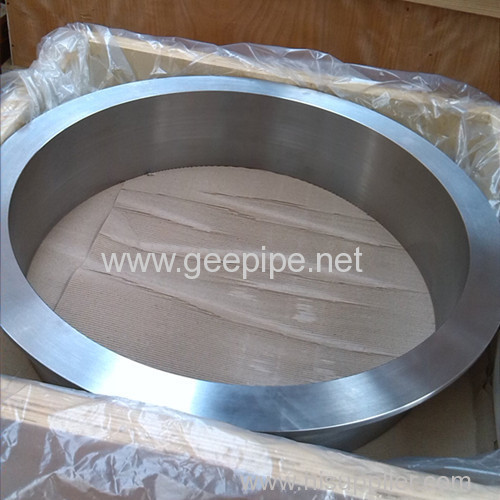

lap joint stub ends DN 600
size | DN 600 sch 10s |
material | ASTM A815 UNSS 31803 |
shape | ROUND |
ApplicationFields | petroleumrefining& chemical engineering, nuclear power engeering, aerospace industry special pressure quuipment , coal processing engineering, thermal power plant, |
processingtechnology | forging |
quality guarantee period: | 2 years |
brand | GEE |
certificate | API ,ISO,BV,ABS |
origin country | CHINA |
standard | MSS SP43 |
Dimensions butt welded Stub Ends schedule 10S MSS SP-43 type A
Dimensional Tolerances of Stub Ends MSS SP-43
Nominal Pipe Size | 1/2 up to 2½ | 3 to 3½ | 4 | 5 to 8 | 10 to 18 | 20 to 24 |
Outside Diameter at Welding End (OD) | 0.8 | 0.8 | 0.8 | + 1.6 - 0.8 | + 2.29 - 0.76 | + 3.05 - 0.76 |
Overall Length (F) | 1.6 | 1.6 | 1.6 | 1.6 | 2 | 2 |
Outside Diameter of Lap (G) | + 0 - 0.76 | + 0 - 0.76 | + 0 - 0.76 | + 0 - 0.76 | + 0 - 1.6 | + 0 - 1.6 |
Thickness of Lap (T) | + 1.52 - 0 | + 1.52 - 0 | + 1.52 - 0 | + 1.52 - 0 | + 1.52 - 0 | + 1.52 - 0 |
Fillet Radius of Lap (R) | + 0 - 0.76 | + 0 - 0.76 | + 0 - 1.6 | + 0 - 1.6 | + 0 - 1.6 | + 0 - 1.6 |
Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness |
Dimensional tolerances are in millimeters unless otherwise indicated.
Note:
MSS SP-43 only covers stainless steel buttweld
fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 - NPS 24. Except with regard to the outside diameter at the bevel.
