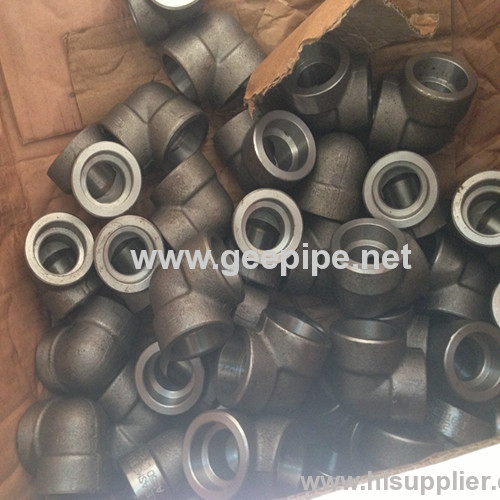

forged socket welded 90° elbow ASTM A 694 F42 made in china from China manufacturer

forged socket welded 90° elbow ASTM A 694 F42 made in china

Price:	1.0~1000.0 USD
Payment Terms:	T/T,L/C,D/P,WU
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DN25 1"

Production Capacity: 1,118,000 Tons / Year

Delivery Date: 7 after receipt of advanced...

pressure: class 6000

DN: 25

material: ASTM A 694 F42

Means of Transport: Ocean,Land,Air

Packing: wooden cases or pallet or c...

Brand Name: GEE

wall thickness: xxs

NPS: 1"

SIZE:1/2"-4"
WT:SCH5S---XXS
pressure;3000--1000lb
large quantity enjoy a discount
The perfect packaging and stable delivery time
Direct manufactu

Dimensions threaded Full / Half couplings - NPS 1/2 to 4 - 3000 LBS - ASME B16.11

NPS	End to End	Outside Diameter	Minimum Length of Thread
NPS	A	D	B	J
1/2	48	28	10.9	13.6
3/4	51	35	12.7	13.9
1	60	44	14.7	17.3
1¼	67	57	17	18
1½	79	64	17.8	18.4
2	86	76	19	19.2
2½	92	92	23.6	28.9
3	108	108	25.9	30.5
4	121	140	27.7	33

Dimensions threaded Full / Half couplings - NPS 1/2 to 4 - 6000 LBS -

NPS	End to End	Outside Diameter	Minimum Length of Thread
NPS	A	D	B	J
1/2	48	38	10.9	13.6
3/4	51	44	12.7	13.9
1	60	57	14.7	17.3
1¼	67	64	17	18
1½	79	76	17.8	18.4
2	86	92	19	19.2
2½	92	108	23.6	28.9
3	108	127	25.9	30.5
4	121	159	27.7	33

General notes:

Dimensions are in millimeters unless otherwise indicated.
Dimension B is minimum length of perfect thread.
The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.

Manufacturing of Butt Weld Fittings

Introduction to Hot Forming

The principal methods of hot working are extrusion, drawing, forging and rolling. Rolling is the most extensive employed forming process, though some limitations may apply to the process. Rolling mainly consists of three major sub-categories: flat rolling, shape rolling (with specifically designed roll grooves) and pipe rolling (including piercing). Forging may be sub-categorized as hamming, pressing, etc.

Forging may be performed under hammers, in mechanical presses and upsetters or by a method known as roll forging. Pressing generally includes the manufacture of forged articles in hydraulic presses. Extrusion usually is performed in hydraulic presses which force the hot steel through a die. Rolling is performed in rolling mills of a variety of types.

The two principal reasons for perform metal forming at elevated temperatures (hot working) are to reduce the forming loads through the reduction of the resistance of the steel to deformation, and to develop preferred metallurgical structures for strength and ductility of the finish products.

The most appropriate manufacturing method of a product will be decided with consideration of its material, sizes, shape, use, standards and other properties.
There are numerous processes for manufacturing butt weld fittings, several examples listed as follows.

Tees: Extrusion method (Hot Forming)

The hot-extrusion process consists of enclosing a piece of metal, heated to forging temperature, in a chamber called a "container" having a die at one end with an opening of the shape of the desired finished section, and applying pressure to the metal through the opposite end of the container. The metal is forced through the opening, the shape of which it assumes in cross-section, as the metal flows plastically under the great pressures used.

Tees using raw material with a bigger diameter than the finished product, the branch outlet is extruded from pipe while the main body is being pressed. The outlet's wall thickness can also be adjusted as needed. Applied to Tees with large diameters, heavy wall thickness and/or special material with challenging workability that cannot be manufactured using the hydraulic bulge method.
