ASME B 16.20 Non-Metallic Flat Gaskets from China manufacturer

Price:	5.0~500.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DN 600 22"

Production Capacity: 1,118,000 Ton/Tons per Year

Delivery Date: 7 after receipt of advanced...

Shape: Equal

Brand Name: GEE

material: rubber

Means of Transport: Ocean,Land,Air

Packing: wooden cases or pallet or c...

Head Code: Square

Technics: Others

WT: STD

pressure: 150LB PN2.0

Dimensions are in millimeters unless otherwise indicated.
d1 = Inside diameter.d2 = Outside diameter.
Dimensional tolerances outside diameter NPS

Pressure Class 150 to 900 - NPS 1/2 to 24 -
NPS	d1	d2
NPS	d1	150 Lbs	300 Lbs	400 Lbs	600 Lbs	900 Lbs
1/2	21	48	54	54	54	64
3/4	27	57	67	67	67	70
1	33	67	73	73	73	79
1¼	42	76	83	83	83	89
1½	48	86	95	95	95	98
2	60	105	111	111	111	143
2½	73	124	130	130	130.2	165
3	89	137	149	149	149	168
3½	102	162	165	162	162	-
4	114	175	181	178	194	206
5	141	197	216	213	241	248
6	168	222	251	248	267	289
8	219	279	308	305	321	359
10	273	340	362	359	400	435
12	324	410	422	419	457	498
14	356	451	486	483	492	521
16	406	514	540	537	565	575
18	457	549	597	594	613	638
20	508	606	654	648	683	699
24	610	718	775	768	791	838
NPS	d1	150 Lbs	300 Lbs	400 Lbs	600 Lbs	900 Lbs
NPS	d1	d2

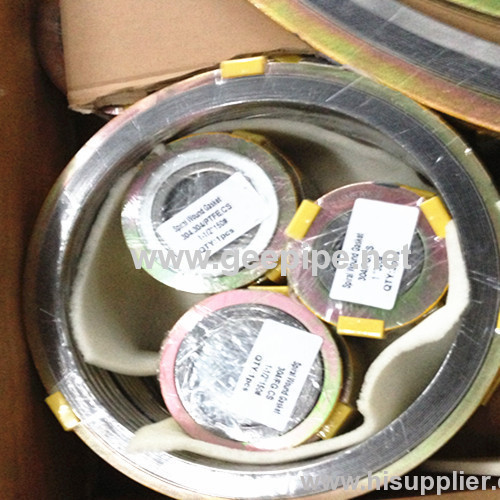

spiral wound gasketDN 600 22DN 600 22made in china

Gee products have four series: 1, flange and forged fittings; 2, the steeliness seamless butt weld fitting with steel plate, for example, elbows, tees, reducers, bends 3, seamless steel pipe, ERW, SSAW; 4, the nuclear project accessories. We also produce more than 3600 types pipeline accessories with 118 kinds of materials.

The main standards include ASME B16.9,ASME B16.47,ASME B16.5,ASME B16.11,ASME B36.10M,MSS SP-75,MSS SP-97 GB/T12459 ,DIN2632,DIN2576,DIN2527,DIN2653,DIN256,HG20592~HG20605.

The main material include A234 WPB,A234 WP1,A234 WP5,A234 WP11,A234 WP12,A234 WP22,A234 WP91,WB36,A420 WPL3,A420 WPL6,A350 LF2,A350 LF3,A105,A515 GR.60,A515 GR.70,A516 GR.60,A516 GR.70,MSS SP75 WPHY42/46/52/56/60/65/70/80,A860 WPHY42/46/52/56/60/65/70/80,A694 F42/46/52/56/60/65/70/80 ,20#,16Mn,Cr5Mo,12Cr1MoV,15CrMo ST37.0,ST35.8,ST45.8,S235JR,P235GH ASTM A106 GR.A,ASTM A106 GR.B,ASTM A53 GR.B API 5L GR.B,API 5L X42/46/52/56/60/65/70/80, A182 F304/F304L/F316/F316L/F321/F347 A403 !WP304/WP316/WP321/WP347.
   we have cooperated very well with many countries in the worldwide .such as Saudi Arabia,Mexico,Brazil,the United States of america,Iraq, Iran,South Korea,Singapore.Hope to get your trust and support.

   welcome to Gee pipe mill co.,ltd.
