China SW RF flange DN100 class 400 from China manufacturer

Price:	5.0~500.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DN100 class 400

Production Capacity: 1,118,000 Tons / Year

Delivery Date: as customers' requirement

Standard or Nonstandard: Standard

Material: Stainless Steel

Size: 4"

Certification: ISO9001,API

Means of Transport: Ocean,Land,Air

Packing: as the expore standards pac...

Structure: Top Chain

Function: Drag Chain

Brand Name: GEE

standard: ASME B 16.5

1)OD:1/2"~48"
2)WT:CL150~CL6000
3)Standard:ASME,ANSI,BS,DIN,JIS,etc.
4)High quality,best price

Dimensions Socket Weld Flanges & Stud Bolts ASME B16.5

Important Information

NPS 1/2 - ID = 22.3 - F = 9.5

Class	150	300	400	600	900	1500	2500
Diameter - A	30	38	...	38	...	38	...
Diameter - D	90	95	...	95	...	120	...
Thickness - B	9.6	12.7	...	14.3	...	22.3	...
Thickness - B	11.2	14.3	...	20.7	...	28.7	...
Diameter - G	35.1	35.1	...	35.1	...	35.1	...
Diameter - K	60.3	66.7	...	66.7	...	82.6	...
Height - H	14	21	...	22	...	32	...
Height - H	15.6	22.6	...	28.4	...	38.4	...
Bolt Holes	4	4	...	4	...	4	...
Diameter - L	15.9	15.9	...	15.9	...	22.2	...
Stud Bolts Diameter x Length
Diameter (in)	1/2	1/2	...	1/2	...	3/4	...
Length (mm)	55	65	...	75	...	110	...

NPS

1/2

3/4

1¼

1½

2½

NPS

Dimensional Tolerances of Socket Weld Flanges ASME B16.5

Outside Diameter ≤ 24 = 1.6 mm \| > 24 = ± 3.2 mm	Inside Diameter ≤ 10 = ± 0.8 mm \| ≥ 12 = + 1.6 mm / - 0 mm
Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm	Outside Diameter of Hub ≤ 12 = + 2.4 mm / - 1.6 mm \| ≥ 14 = ± 3.2 mm
Diameter of Counterbore Same as for Inside Diameter	Drilling Bolt Circle = 1.6 mm \| Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. \| ≥ 3 = 1.6 mm max.
Thickness ≤ 18 = + 3.2 mm / - 0 \| ≥ 20 = + 4.8 mm / - 0	Length thru Hub ≤ 18 = + 3.2 mm / - 0.8 mm \| ≥ 20 = + 4.8 mm / - 1.6 mm

Notes
1. Dimensions are in millimeters unless otherwise indicated.
2. The length of the stud bolt does not include the height of the chamfers (points).

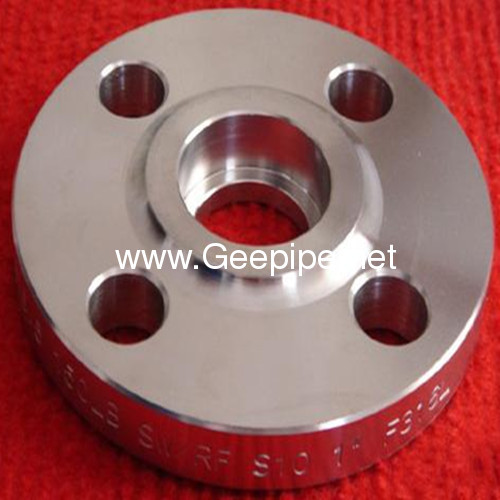

ASME B 16.5 forged stainless socket welding forged Flange

place of origin China
Brand GEE
Standard ASMEB16.5
Material stainless steel(304 304L 316 36L)
pressure CLASS400
Size DN 100
surface FF/RF/M/FM/G/T/RJ
Technics forging
qualification ISO9001/API/CE/BV/ABS/The famous trademark of china
Advantages 1) High quality and competitive price            2) Direct Manufacture
3) OEM offerd                                             4) Reliable supplier and good after-sales service
5)delivery in time.                                        6) year-round supply
7)Large orders will enjoy a discount
Surface Treatment
black rust-proof oil,transparent oil,hot galvanizing or as customer's special requirem
Application ranges Petroleum, power, gas, metallurgy, smelting, foodstuff, papermaking, chemical,medical equipment, aviation, boiler heat exchangerand other fields.

the advanced production equipment:

forged stainless/carbon steel/alloy stee socket welding Flange

the standard package:

forged stainless/carbon steel/alloy stee socket welding Flange

the global clients:

forged stainless/carbon steel/alloy stee socket welding Flange

the qualification:

forged stainless/carbon steel/alloy stee socket welding Flange

company products:
forged stainless/carbon steel/alloy stee socket welding Flange

ASME B 16.5 forged stainless socket welding Flange
